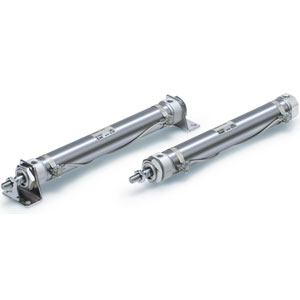

SMC standard cylinder CDM2B, CDM2L, CDM2F, CDM2G, CDM2C, CDM2D, CDM2U, CDM2T, CDM2E, CDM2V, CDM2BZ, CDM2FZ, CDM2UZ data parameter selection manual

1. The internal thread of the rod end is standardized. 2. The operability of the magnetic switch is improved and the position is easy to adjust. 3. Single clevis type and trunnion type swing bases are provided. 4. The models of the rod end mounting parts and the swing base mounting parts are set ( Save time in ordering cylinders and mounting parts separately) 5. With magnetic switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK, CDM2□P, CDBM2)
